Installing a 12v And 240v Campervan System

By

I’ve installed complete electrical systems in four vans now. The first installation took me four weekends, involved two rewiring sessions when I realized I’d cocked up the layout, and resulted in a blown fuse.

The most recent installation took me three days start to finish with zero mistakes and perfect cable management. The difference? Understanding the installation sequence, having every component and tool ready before starting, and actually drawing a proper wiring diagram instead of “figuring it out as I go.”

Here’s what nobody tells you: electrical installation isn’t difficult—it’s unforgiving. Make a mistake in planning and you can fix it. Make a mistake in wiring and you might not discover it until something fails, catches fire, or leaves you stranded with no power. The key is methodical planning, proper testing at every stage, and never assuming a connection is good until you’ve verified it.

I’ve made every installation mistake: wrong cable sizes, forgotten fuses, reversed polarity, poor crimping, inadequate testing, crossed circuits. This guide contains everything I wish someone had told me before my first installation.

This is a complete, step-by-step guide to installing both 12V and 240V electrical systems in campervans: the planning phase everyone skips, the installation sequence that prevents rework, the testing procedures that catch problems early, and the mistakes that cost me days of work so they don’t cost you anything.

Table of Contents

  1. Pre-Installation Planning
  2. Tools and Materials
  3. Battery Installation
  4. Main Distribution System
  5. 12V Circuit Installation
  6. DC-DC Charger Installation
  7. Inverter Installation
  8. 240V System Installation
  9. System Integration
  10. Testing and Commissioning
  11. Cable Management
  12. Troubleshooting

Pre-Installation Planning

Don’t touch a wire until you’ve completed this phase. I’m serious.

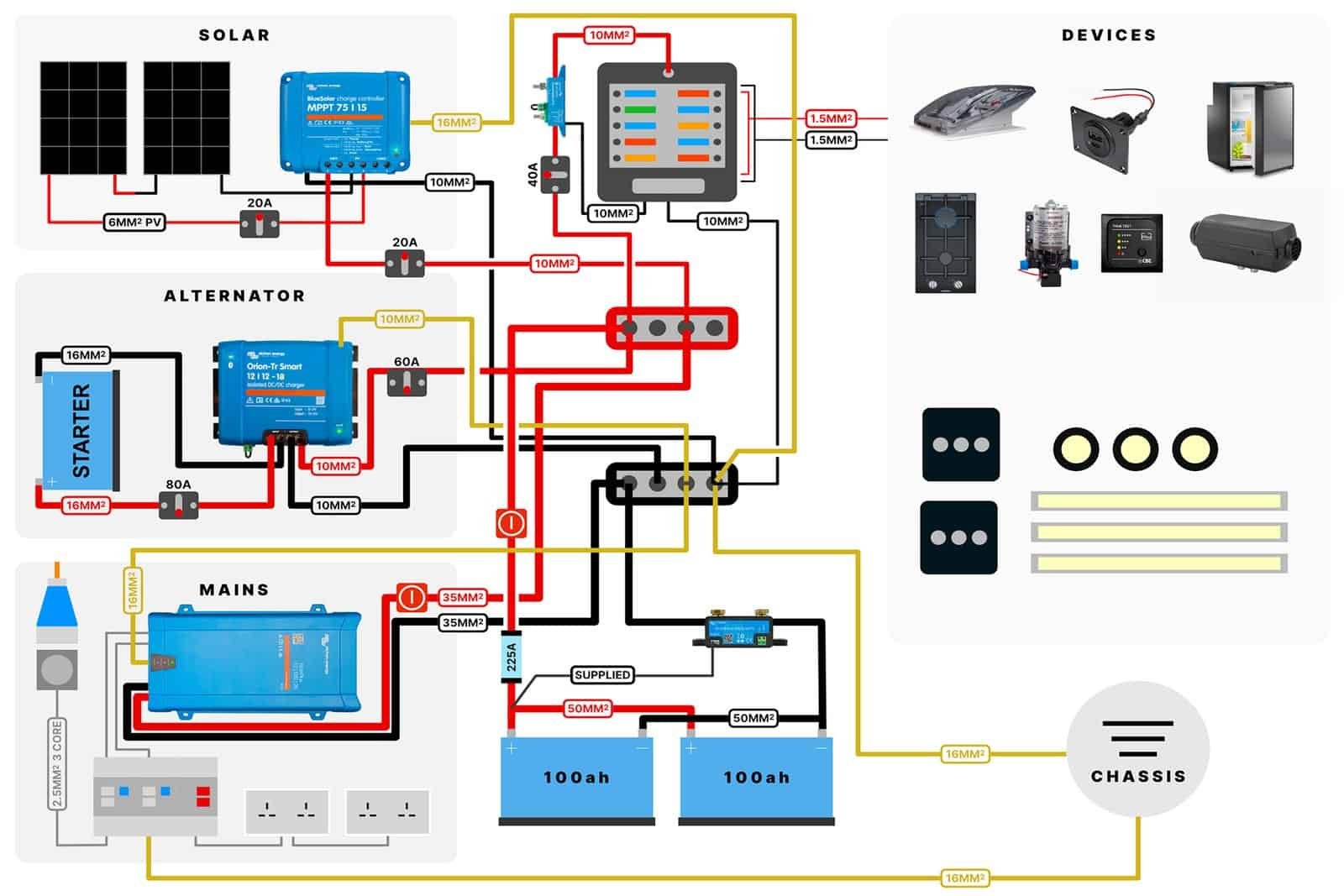

Step 1: Create a Wiring Diagram

Don’t skip this. Every time I’ve skipped diagrams, I’ve regretted it.

What to draw:

  1. Power source (battery)
  2. Protection (main fuse)
  3. Distribution (bus bar)
  4. Every circuit:
    • Lights (with switch)
    • Fridge (with fuse)
    • Water pump (with switch and fuse)
    • USB outlets (with fuse)
    • Heater (with switch and fuse)
    • Inverter (with switch and fuse)
  5. Charging sources:
    • Solar controller
    • DC-DC charger
    • Mains charger (if hookup)
  6. Monitoring (battery shunt)

Tools for diagrams:

  • Paper and pencil (simple, effective)
  • draw.io (free online)
  • Circuit design software (overkill but pretty)

My method: Paper diagram with colored pencils

  • Red = positive 12V
  • Black = negative/ground
  • Blue = 230V live
  • Green/yellow = earth
  • Different line thickness for different cable sizes

Step 2: Physical Component Layout

Mark on van floor plan:

  1. Battery location (under seat, under bed, etc.)
  2. Distribution point (bus bar location)
  3. Each device location:
    • Lights (ceiling, reading lights)
    • Fridge (kitchen area)
    • Water pump (near tank)
    • USB outlets (bedside, kitchen)
    • Switches (control panel)
  4. Charging equipment:
    • Solar controller (near battery)
    • DC-DC charger (near battery)
    • Inverter (near battery)
  5. 240V components (if installing):
    • Hookup inlet (exterior wall)
    • RCD/consumer unit (accessible location)
    • 230V sockets (kitchen, maybe bedside)

Measure distances for cable routing:

  • Battery to bus bar
  • Bus bar to each device
  • Add 20% for routing (cables don’t run straight)

Step 3: Calculate Cable Sizes

For each circuit, calculate:

  1. Maximum current
  2. Cable length (actual route, not straight line)
  3. Acceptable voltage drop (3% maximum)
  4. Required cable size (from voltage drop calculation)

Example: LED lighting circuit

  • Current: 5A maximum
  • Length: 4m from bus bar to lights
  • Voltage drop formula: (5A × 4m × 2 × 8.0mΩ/m) ÷ 1000 = 0.32V
  • Percentage: 0.32V ÷ 12V = 2.7%
  • Cable: 2.5mm² is adequate

Do this for every circuit before buying cable.

Step 4: Create Shopping List

From your diagram and calculations:

Cables (buy 10% extra):

  • 2.5mm²: ___m
  • 4mm²: ___m
  • 6mm²: ___m
  • 16mm²: ___m (battery connections)
  • 25mm²: ___m (inverter, if needed)

Terminals and connectors:

  • Ring terminals (various sizes for cable gauges)
  • Blade terminals
  • Butt connectors
  • Heat shrink tubing (various diameters)

Fusing:

  • ANL fuse + holder (main battery)
  • Blade fuses + holders (each circuit)
  • Spare fuses (always have spares)

Distribution:

  • Bus bars (positive and negative)
  • Mounting hardware
  • Cable ties

Switches:

  • Rocker switches (for each switched circuit)
  • Mounting panel or enclosure

Protection:

  • RCD (if 240V system)
  • Circuit breakers or fuse holders

Connectors:

  • Anderson connectors (optional, for removable devices)
  • MC4 connectors (solar)
  • Appropriate 230V connectors

Step 5: Plan Installation Sequence

Correct order prevents rework:

  1. Install battery (secure, fused)
  2. Install bus bar system (distribution point)
  3. Run main power cables (battery to bus bar)
  4. Install DC-DC charger (connects to battery)
  5. Install solar controller (connects to battery)
  6. Run 12V circuit cables (bus bar to devices)
  7. Install inverter (connects to battery)
  8. Install 240V system (if needed)
  9. Connect all devices
  10. Test each circuit individually
  11. Test complete system
  12. Cable management (final tidy)

Why this order?

  • Battery first (power source for testing)
  • Distribution second (connection point for everything)
  • Charging before loads (can test as you go)
  • Devices last (easier to test circuits before connecting loads)
  • Cable management last (don’t tidy until everything works)

Tools and Materials

Here’s what you actually need. Having everything ready saves hours.

Essential Tools

Hand tools:

  • Wire strippers (good quality, £15-30)
  • Crimping tool (hydraulic is best, £30-80)
  • Screwdrivers (Phillips and flat, various sizes)
  • Spanners (8mm-13mm typical)
  • Socket set (10mm-13mm)
  • Cable cutters (for thick cables)
  • Knife or cable stripper

Power tools:

  • Cordless drill (12V minimum, 18V better)
  • Drill bits (2mm, 3mm, 4mm, 6mm, 8mm)
  • Hole saw set (for cable entry, switch mounting)
  • Step drill bit (optional but excellent for clean holes)

Testing equipment:

  • Multimeter (essential, £20-100)
  • DC clamp meter (very useful, £40-80)
  • Test light (quick continuity checks)
  • Cable tracer (optional, useful for finding cables)

Safety:

  • Safety glasses
  • Work gloves
  • Fire extinguisher (nearby)
  • First aid kit

My toolkit (what I actually use):

  • Engineer PA-09 crimping tool (£35)
  • Klein wire strippers (£20)
  • DeWalt drill (already owned)
  • Fluke 117 multimeter (£150, cheaper ones work fine)
  • Standard socket set
  • Step drill bit (£18)

Materials Checklist

Cables (automotive grade, stranded):

  • Red cable (positive): 2.5mm², 4mm², 6mm², 16mm²
  • Black cable (negative): matching sizes
  • Yellow/green (earth, for 230V): 2.5mm²

Terminals:

  • Ring terminals: M6, M8, M10 (various cable sizes)
  • Blade terminals: male and female
  • Butt connectors (various sizes)
  • Heat shrink: 3mm, 5mm, 8mm, 12mm, 20mm

Fusing:

  • ANL fuse holder + 80-125A fuse (main battery)
  • Blade fuse holders (one per circuit)
  • Assorted blade fuses: 5A, 10A, 15A, 20A, 30A
  • MIDI fuse holder + fuse (inverter, if needed)

Distribution:

  • 12-way positive bus bar with fuse holders
  • Negative bus bar (6-12 way)
  • Earth bus bar (if 230V system)
  • Mounting screws and standoffs

Switches and controls:

  • Rocker switches: 10A or 20A rated
  • Switch panel or enclosure
  • LED indicators (optional)

Cable management:

  • Cable ties (UV resistant, various sizes)
  • Split loom conduit (10mm, 15mm, 20mm)
  • Cable clips and saddles
  • Grommets (for panel pass-throughs)
  • Adhesive cable tie mounts

Protection:

  • RCD (30mA, if 240V)
  • Consumer unit (2-4 way, if 230V)
  • Rubber grommets (various sizes)
  • Conduit (for 230V cables)

Sealant and adhesives:

  • Sikaflex or similar (cable entries through walls)
  • Double-sided tape (temporary holding)
  • Cable clamp adhesive mounts

Labels:

  • Cable labels or label maker
  • Permanent marker
  • Coloured tape (circuit identification)

Estimated Costs

Basic 12V system (no 230V):

  • Cables and terminals: £80-120
  • Fusing and distribution: £60-90
  • Switches and panel: £40-60
  • Cable management: £30-50
  • Tools (if buying): £100-200
  • Total materials: £210-320
  • Total with tools: £310-520

Complete 12V + 240V system:

  • Above plus:
  • 240V cables and components: £60-90
  • RCD and consumer unit: £50-80
  • 230V sockets and switches: £30-50
  • Additional protection: £40-60
  • Total materials: £390-600
  • Total with tools: £490-800

My actual spend (medium system, had some tools):

  • Materials: £380
  • New tools: £55 (crimping tool, step bit)
  • Total: £435

Battery Installation

First component in. Get this right—everything else depends on it.

Step 1: Choose Location

Requirements:

  • Low in van (center of gravity)
  • Accessible (for connections and maintenance)
  • Secure (won’t move in accident)
  • Ventilated (lead-acid) or enclosed (lithium okay)
  • Protected from damage

Common locations:

  • Under seating (my choice)
  • Under bed platform
  • In front passenger footwell (single-seat vans)
  • Dedicated battery box in storage area

My location: Under passenger seat, secured to floor with L-brackets.

Step 2: Build Battery Box (If Needed)

For lead-acid batteries (hydrogen gas):

  • Sealed box with vent to outside
  • Sturdy construction (battery is heavy)
  • Acid-resistant material (plastic, coated wood)
  • Secure lid with access for connections

For lithium batteries:

  • Protection from physical damage
  • Doesn’t need venting
  • Can be more compact
  • Still needs secure mounting

My setup (lithium):

  • No box (under seat is protected)
  • Secured with L-brackets bolted to floor
  • Strap over top (additional security)
  • Easy access to terminals

Step 3: Secure Battery

Critical: Battery must not move in accident. A 25kg battery becoming a projectile in a crash is lethal.

Methods:

L-bracket mount:

  1. Drill floor (through to chassis if possible)
  2. Bolt L-brackets to floor
  3. Battery sits between brackets
  4. Strap over top

Ratchet strap:

  1. Anchor points on either side
  2. Ratchet strap over battery
  3. Tighten securely
  4. Check regularly (can loosen over time)

Battery box:

  1. Box bolted to floor
  2. Battery inside box
  3. Lid secured
  4. Additional strap recommended

My installation:

  • Two L-brackets, one each side of battery
  • Bolted through floor to chassis members
  • Ratchet strap over top (belt and braces)
  • Checked tightness every 3 months

Step 4: Install Main Fuse

Critical safety: Fuse on positive terminal, within 300mm of battery.

Process:

  1. Select fuse rating:
    • Calculate maximum current (all loads + charging)
    • My system: Max 80A from all sources
    • Fuse rating: 100A ANL (125% of maximum)
  2. Connect fuse holder to battery:
    • ANL fuse holder with ring terminals
    • Red cable: 16-25mm² (short run, high current)
    • Ring terminal sized for battery post (M8 or M10 typical)
    • Crimp terminal onto cable
    • Connect to battery positive
  3. Verify polarity (before going further):
    • Battery positive = red cable
    • Battery negative = black cable
    • Double-check with multimeter
  4. Insert fuse (do this last, after everything else is wired):
    • Keeps system dead during installation
    • Insert fuse when ready to power up

Step 5: Main Negative Connection

Process:

  1. Cable from battery negative to negative bus bar
    • Same size as positive (16-25mm²)
    • Black cable
    • Ring terminal at battery end
    • Ring or cable lug at bus bar end
  2. No fuse on negative (common mistake):
    • Negative is ground/return path
    • Fusing negative would prevent fuses from working correctly
    • Only positive gets fused
  3. Short as practical:
    • Minimize cable length
    • Reduce voltage drop
    • My run: 0.8m from battery to bus bar

Step 6: Battery Shunt Installation (If Monitoring)

For battery monitors (Victron SmartShunt, Renogy monitor):

Critical rule: ALL negative current must flow through shunt

Installation:

  1. Disconnect battery negative from bus bar (if already connected)
  2. Install shunt on battery negative terminal:
    • Shunt battery side to battery negative post
    • Shunt load side to negative bus bar
  3. Connect shunt signal cable:
    • Small wire from shunt to monitor/controller
    • Route carefully (don’t damage)
  4. Power wire for monitor:
    • Thin positive wire from battery to shunt/monitor
    • Through small fuse (1-2A)

Result: All negative current flows Battery → Shunt → Bus Bar → Devices → Back to Bus Bar → Shunt → Battery

The shunt measures everything.

My installation: Victron SmartShunt

  • Mounted directly on battery negative post
  • All negatives route through it
  • Signal cable to Bluetooth module
  • Power from battery positive (1A fuse)

Main Distribution System

The central hub where everything connects.

Step 1: Choose Bus Bar Location

Considerations:

  • Near battery (short main cable runs)
  • Accessible (for adding circuits)
  • Protected (behind panel or in cabinet)
  • Space for future expansion

My location: Electrical cabinet on rear wall, 1m from battery.

Step 2: Mount Bus Bars

You need two:

  1. Positive bus bar (fused)
  2. Negative bus bar (unfused)
  3. Earth bus bar (if 240V system)

Mounting:

  1. Cut backing board (plywood or similar):
    • Size to fit bus bars with space around
    • My board: 400mm × 300mm
  2. Mount bus bars to board:
    • Positive bar: Blade fuse holders (6-12 positions)
    • Negative bar: Screw terminals (6-12 positions)
    • Use standoffs (prevent shorts to board)
  3. Mount board to van:
    • Screw to wall or floor
    • Ensure secure (will have cable tension)

My setup:

  • 12-position positive bus with blade fuse holders
  • 10-position negative bus
  • 6-position earth bus (for 230V)
  • All mounted on plywood board
  • Board screwed to rear wall cabinet

Step 3: Main Power Cables

From battery to bus bar:

Positive cable:

  1. From battery main fuse to positive bus bar:
    • Cable size: 16-25mm² (depends on max current)
    • My system: 16mm² (adequate for 100A)
    • Length: 1m in my van
  2. Crimp ring terminal at bus bar end:
    • Large terminal (M8 or M10)
    • Proper crimping
    • Heat shrink over connection
  3. Connect to bus bar input:
    • Usually a large bolt/stud
    • Tighten securely
    • Verify connection

Negative cable:

  1. From battery (through shunt if monitoring) to negative bus bar:
    • Same size as positive (16mm² in my case)
    • Black cable
    • Ring terminals both ends
  2. Connect to bus bar:
    • Main input terminal
    • Tighten securely

Testing before proceeding:

  1. DON’T insert main fuse yet
  2. Check for shorts:
    • Multimeter in continuity mode
    • Test positive bus to negative bus
    • Should NOT have continuity (open circuit)
    • If continuity exists, find and fix short
  3. Only when verified no short:
    • Insert main fuse
    • System is now live
    • Verify voltage at bus bars (12.4-13.2V typical)

12V Circuit Installation

Now we wire each circuit from bus bar to device.

Step 1: Plan Circuit Routing

For each circuit, plan:

  1. Cable route from bus bar to device
  2. Switch location (if switched circuit)
  3. Cable size (from earlier calculations)
  4. Fuse rating (load current × 1.25)

Example: LED lighting circuit

  • Route: Bus bar → control panel (switch) → ceiling → lights
  • Switch: Panel-mounted rocker switch
  • Cable: 2.5mm² (5A load)
  • Fuse: 10A (5A × 1.25 = 6.25A, round to 10A)

Step 2: Run Cables

General process for each circuit:

  1. Measure cable length:
    • Actual route (not straight line)
    • Add 10% for connections and mistakes
  2. Cut positive and negative cables:
    • Same length
    • Same size
    • Mark each (label which circuit)
  3. Route cables together:
    • Keep positive and negative together
    • Use cable loom or ties
    • Secure every 30-50cm
    • Protect through metal panels (grommets)
  4. Leave slack:
    • 10-15cm extra at each end
    • Allows for connection and future service
    • Don’t pull guitar-string tight

Step 3: Install Switches (Switched Circuits)

For circuits with switches:

Switch wiring:

  • Positive from bus bar → switch → device
  • Negative from bus bar → device (direct)
  • Switch only breaks positive (standard practice)

Installation:

  1. Mount switch panel:
    • Accessible location
    • Secure mounting
    • Appropriate size holes
  2. Wire switch:
    • Positive IN from bus bar
    • Positive OUT to device
    • Use blade terminals on switch tabs
    • Or solder and heat shrink (more reliable)
  3. Test switch:
    • Continuity test
    • Should conduct when ON
    • Open circuit when OFF

My control panel:

  • 8 rocker switches (lights, pump, heater, etc.)
  • Panel-mounted in overhead cabinet
  • All switches break positive
  • Each labeled clearly

Step 4: Connect Circuits to Bus Bar

Positive connections:

  1. Strip cable (10-12mm)
  2. Crimp ring terminal:
    • Size appropriate for cable
    • Proper crimping (critical)
    • Heat shrink over connection
  3. Insert fuse in bus bar position:
    • Correct rating for circuit
    • Blade fuse in fuse holder
  4. Connect terminal under fuse holder screw:
    • Tighten securely
    • Verify terminal seated properly

Negative connections:

  1. Strip cable (10-12mm)
  2. Crimp ring terminal or use bare wire:
    • Ring terminal more reliable
    • Bare wire acceptable for screw terminals
  3. Connect to negative bus bar:
    • Under screw terminal
    • Tighten securely

Testing each circuit:

Before connecting device:

  1. Check fuse continuity:
    • Should have continuity through fuse
    • Voltage at circuit cable should match bus bar
  2. Check for shorts:
    • Measure resistance positive to negative
    • Should be high (infinite on most meters)
    • Low resistance = short (find and fix)
  3. Switch test (if switched):
    • Voltage should appear/disappear with switch

Step 5: Connect Devices

Only after circuit testing:

Lights:

  1. Identify polarity:
    • LED strips: Usually marked positive/negative
    • Individual LEDs: Red = positive, black = negative
  2. Connect wires:
    • Solder preferred (most reliable)
    • Or use connector blocks
    • Heat shrink over connections
  3. Test:
    • Switch on
    • Light should illuminate
    • Check brightness (dim = voltage drop or wrong voltage)

Water pump:

  1. Connect positive to switch output
  2. Connect negative to negative bus
  3. Test:
    • Press switch
    • Pump should run
    • Check current draw (should match rating)

USB outlets:

  1. Connect positive to fused circuit
  2. Connect negative
  3. Test with phone:
    • Should charge normally
    • Check voltage at outlet (should be 5V ±0.25V)

Fridge:

  1. Usually direct connection (not switched):
    • Positive to fused bus bar position
    • Negative to bus bar
    • Fridge often has internal switch
  2. Large fuse (fridge draws significant current):
    • 10-15A typical for compressor fridge
  3. Thick cable (4-6mm²):
    • Fridges draw 5-8A when running
    • Prevent voltage drop

My fridge installation:

  • Direct to bus bar (20A fused circuit)
  • 4mm² cable, 3m run
  • Voltage drop: 0.36V (acceptable)
  • Fridge has internal thermostat (controls on/off)

Diesel heater:

  1. Check manufacturer specs:
    • Most draw 10-25W (1-2A)
    • Some draw more on startup
  2. Fused circuit (10A typical)
  3. Switched or direct:
    • Mine is switched (heater also has controller)
  4. Earth/ground (some heaters require):
    • Connect to van chassis
    • Manufacturer instructions

Step 6: Label Everything

Don’t skip this:

At bus bar:

  • Label each circuit position
  • “Lights Main”, “Fridge”, “Water Pump”, etc.

At devices:

  • Label cable at device end
  • Future troubleshooting

At switches:

  • Label what each switch controls

My method: Label maker plus colored heat shrink

  • Red = lights
  • Blue = pumps/water
  • Green = heating
  • Yellow = USB/charging
  • White = misc

DC-DC Charger Installation

Connects starter battery to leisure battery for charging while driving.

Step 1: Location

Requirements:

  • Near leisure battery (short cable runs)
  • Accessible (for monitoring LED indicators)
  • Ventilated (generates heat)
  • Protected from moisture

My location: Mounted on wall next to leisure battery, 0.5m away.

Step 2: Cable Sizing

From starter battery to DC-DC input:

  • Long run (5-8m typical)
  • High current (30-60A)
  • Thick cable needed (16-35mm²)

Example: 30A DC-DC, 6m run from starter battery

  • Voltage drop target: <3%
  • Required: 25mm² cable minimum
  • I used: 25mm² (just adequate)

From DC-DC output to leisure battery:

  • Short run (0.5-1m)
  • Same current as input
  • Same cable size (16-25mm²)

Step 3: Starter Battery Connection

Safety first: Disconnect starter battery negative before working.

Process:

  1. Identify starter battery positive:
    • Under bonnet
    • Usually near engine
  2. Install fuse holder:
    • Within 300mm of starter battery positive
    • Fuse rating: DC-DC current × 1.25
    • Example: 30A charger = 40A fuse
  3. Connect cable:
    • Ring terminal to battery post
    • Through fuse holder
    • Route carefully (avoid heat, moving parts)
  4. Route through bulkhead:
    • Find existing grommet/hole
    • Or drill new hole (seal with grommet and sealant)
    • Protect cable with additional sleeve
  5. Run to DC-DC charger location:
    • Secure every 30-50cm
    • Avoid heat sources
    • Protect from chafing

Negative from starter battery:

  • Connect to chassis/earth point near starter battery
  • Or run separate negative (better but more cable)
  • I used chassis ground (adequate)

Step 4: Leisure Battery Connection

DC-DC output to leisure battery:

  1. Positive output from DC-DC:
    • To leisure battery positive
    • Through fuse (30-60A depending on charger)
    • Short cable run (0.5-1m)
  2. Negative output from DC-DC:
    • To leisure battery negative
    • Through shunt (if battery monitoring)
    • Or direct to battery
  3. Proper crimping:
    • Thick cable needs good crimps
    • Use hydraulic crimping tool if possible
    • Heat shrink over connections

Step 5: DC-DC Configuration

Check manufacturer instructions:

Some DC-DC chargers require:

  • Configuration switches (battery type)
  • DIP switches (voltage settings)
  • Programming (via app or buttons)

My Renogy 30A DC-DC:

  • DIP switches for battery type (set to lithium)
  • No programming needed
  • Automatic operation when engine running

Step 6: Testing

Before first start:

  1. Check all connections tight
  2. Verify polarity:
    • Input positive to starter positive
    • Output positive to leisure positive
    • Negatives to negatives/ground
  3. Start engine:
    • DC-DC should activate (LED indicator)
    • Multimeter on leisure battery should show rising voltage
    • Should see 14.2-14.6V (charging voltage)
  4. Check current flow:
    • Clamp meter on output cable
    • Should see charging current (20-40A typical)
    • Reduces as battery charges

My testing results:

  • Engine start: DC-DC activated (green LED)
  • Leisure battery: 12.8V → 14.4V (charging)
  • Current: Started at 28A, reduced to 15A after 30 mins
  • Success

Inverter Installation

Converts 12V DC to 230V AC for household devices.

Step 1: Location Selection

Requirements:

  • Very close to battery (massive current draw)
  • Ventilated (generates heat)
  • Accessible (for on/off switch)
  • Space for cable routing

My location: Under passenger seat next to battery, 0.5m away.

Step 2: Cable Sizing (Critical)

Inverter draws huge current:

Example: 1000W inverter

  • Power: 1000W
  • Voltage: 12V
  • Efficiency: 90%
  • Current: 1000W ÷ 12V ÷ 0.9 = 93A

That’s massive current.

Cable sizing:

  • 1000W inverter, 0.5m cable run
  • 93A current
  • Need: 25mm² minimum (I used 35mm² for safety)

If cable is too thin:

  • Overheats (fire risk)
  • Voltage drop (inverter shuts down)
  • Efficiency loss

Step 3: Fusing

Fuse rating: Inverter max current × 1.25

Example: 1000W inverter (93A typical, 120A peak)

  • Fuse: 125-150A
  • I used: 125A MIDI fuse

Fuse location: Within 300mm of battery positive

Step 4: Physical Installation

Mounting inverter:

  1. Secure mounting:
    • Bolted to floor or wall
    • Won’t vibrate loose
    • Adequate ventilation (100mm clear space around)
  2. Cable connections:
    • Positive: Battery positive → fuse → inverter
    • Negative: Battery negative → inverter
    • Use large ring terminals (M8 or M10)
    • Hydraulic crimping essential (thick cables)
  3. Switch (recommended):
    • High-current switch on positive
    • Or remote on/off (many inverters have this)
    • Prevents parasitic drain when not in use

My installation:

  • Inverter bolted to floor under seat
  • 35mm² cables (positive and negative)
  • 125A fuse, 200mm from battery
  • Remote on/off switch on control panel

Step 5: 230V Output

From inverter 230V output:

If simple setup (one or two devices):

  • UK socket connected directly to inverter output
  • Simple but limited

If multiple devices:

  • Install small consumer unit
  • Distribute to multiple sockets
  • More complex but flexible

My setup: Direct connection

  • Single 230V socket near battery
  • Extension lead when needed
  • Simple, adequate for my usage

Step 6: Testing

Safety first: 230V can kill.

Testing procedure:

  1. Inverter OFF, check wiring:
    • Polarity correct (positive to positive)
    • All connections tight
    • No bare wire exposed
  2. Turn inverter ON:
    • Should power up (LED or display)
    • May beep or make noise (normal)
  3. Check output voltage:
    • Multimeter on AC setting
    • Should read 230V ±10V
    • My inverter: 232V (perfect)
  4. Test with load:
    • Plug in laptop charger or similar
    • Should work normally
    • Check inverter isn’t overheating
  5. Check current draw from battery:
    • Clamp meter on 12V input cable
    • 100W load should draw ~10A from battery
    • Matches expected current

Warning signs:

  • Voltage way off (210V or 250V = problem)
  • Excessive heat (inverter too small or poor ventilation)
  • Strange noises (could indicate fault)
  • Shutdowns (voltage drop or overload)

240V System Installation

For hookup and inverter-powered 230V circuits. This is dangerous voltage.

Safety Warning

230V can kill you. If you’re not confident, hire a qualified electrician.

Safety rules:

  • Never work on live 230V
  • Always disconnect before working
  • Use RCD protection (essential)
  • Test cables are dead before touching
  • Follow regulations (BS 7671 in UK)

Step 1: Hookup Inlet Installation

If adding campsite hookup capability:

Location:

  • Exterior wall (access from outside)
  • Low on vehicle (near ground)
  • Protected from road spray
  • Accessible when parked

Installation:

  1. Cut hole in exterior wall:
    • Size for inlet (usually 60-80mm)
    • Use hole saw
    • Deburr edges
  2. Mount hookup inlet:
    • Gasket between inlet and wall
    • Secure with screws
    • Weatherproof
  3. Wire connections (inside van):
    • Live (brown) to RCD live
    • Neutral (blue) to RCD neutral
    • Earth (green/yellow) to earth bus bar

My installation:

  • Inlet on rear corner (low)
  • 3-pin 16A inlet (standard campsite)
  • Gasket sealed, no leaks in 2 years

Step 2: RCD Installation

RCD (Residual Current Device) = lifesaver.

What it does: Trips in milliseconds if current leakage detected (e.g., you touch live wire).

Specification:

  • 30mA trip current (for human protection)
  • Rated for system current (16A typical for vans)

Installation:

  1. Mount RCD:
    • Accessible location
    • Din rail or panel mount
    • First component after hookup inlet
  2. Wire hookup inlet to RCD input:
    • Live to RCD live in
    • Neutral to RCD neutral in
    • Earth to earth bus (not through RCD)
  3. Test RCD:
    • Test button should trip RCD
    • Should reset after testing
    • If doesn’t trip, RCD is faulty (replace)

Step 3: Consumer Unit Installation

Distributes 230V to multiple circuits:

Components:

  • MCBs (Miniature Circuit Breakers) for each circuit
  • Or fuse holders
  • Bus bars for distribution

Wiring:

  1. RCD output to consumer unit input
  2. Each circuit:
    • Live through MCB (6A or 10A typical)
    • Neutral to neutral bus bar
    • Earth to earth bus bar
  3. Circuits:
    • Kitchen socket: 10A MCB
    • Bedside socket: 6A MCB
    • Inverter feed: 10A MCB
    • Mains battery charger: 6A MCB

My system:

  • 4-way consumer unit
  • Each socket on separate MCB
  • Allows isolation of individual circuits

Step 4: 230V Socket Installation

Standard UK 3-pin sockets:

Location planning:

  • Kitchen (for blender, kettle, etc.)
  • Bedside (for phone charging, laptop)
  • Workstation (if remote work setup)

Installation:

  1. Mount socket back box:
    • Secure to wall
    • Flush mount or surface mount
  2. Run cable from consumer unit:
    • 2.5mm² three-core cable (live, neutral, earth)
    • Protect in conduit
    • Secure every 30cm
  3. Wire socket:
    • Live (brown) to L terminal
    • Neutral (blue) to N terminal
    • Earth (green/yellow) to E terminal
    • Double-check colors
  4. Test before closing up:
    • Voltage test (230V between L and N)
    • Earth continuity test
    • RCD trip test

My sockets:

  • Two sockets (kitchen and bedside)
  • Surface-mounted (easier in van)
  • Separate MCB protection
  • Both work from hookup or inverter (switchable)

Step 5: Mains Battery Charger

Charges leisure battery from hookup:

Installation:

  1. Mount charger:
    • Near battery
    • Ventilated
    • Protected from moisture
  2. 230V input:
    • From consumer unit (6A MCB)
    • Three-core cable
    • Proper strain relief
  3. 12V output to battery:
    • Positive to battery positive (fused)
    • Negative to battery negative
    • Same as other charging sources
  4. Configure charger:
    • Battery type (lithium/AGM/etc.)
    • Charging voltage
    • Current limit

My charger (Victron Blue Smart 20A):

  • Connected to consumer unit
  • Auto-detects hookup connection
  • Charges battery automatically
  • Bluetooth monitoring (see status on phone)

Step 6: Switchover System

Choose power source (hookup vs inverter):

Option 1: Manual changeover

  • Switch between hookup and inverter
  • Simple, cheap
  • Must remember to switch

Option 2: Automatic transfer switch

  • Detects hookup presence
  • Switches automatically
  • More expensive (£80-150)
  • Better user experience

Option 3: Separate circuits

  • Hookup powers some sockets
  • Inverter powers others
  • No switching needed
  • Simple but less flexible

My setup: Manual switch

  • Three-position switch: OFF / Hookup / Inverter
  • Feeds 230V socket circuits
  • Must manually select (acceptable for my usage)

Step 7: Earthing

Critical for safety:

All 230V equipment must be earthed.

Earth system:

  1. Earth bus bar:
    • All earth wires connect here
    • Including: sockets, appliances, metal parts
  2. Van chassis:
    • Connect earth bus to chassis
    • Large cable (6-10mm²)
    • Ensures fault current has path to ground
  3. Hookup earth:
    • When on hookup, earth from campsite
    • Provides earth reference
    • Essential for RCD operation

My earthing:

  • Earth bus bar in consumer unit
  • Connected to chassis (10mm² cable)
  • All sockets earthed
  • All metal components bonded to earth

System Integration

Bringing everything together into one coherent system.

Step 1: Final Connections

Verify before powering up:

  1. Every circuit has fuse
  2. All connections tight
  3. No bare wires exposed
  4. Polarity correct everywhere
  5. Cable strain relief adequate

Create final checklist:

  • [ ] Battery secured
  • [ ] Main fuse installed (last step)
  • [ ] Bus bars mounted
  • [ ] All 12V circuits connected and fused
  • [ ] DC-DC charger wired and tested
  • [ ] Solar controller wired (if installed)
  • [ ] Inverter wired and fused
  • [ ] 240V RCD installed and tested
  • [ ] All 230V circuits protected
  • [ ] Earth bonding complete
  • [ ] No shorts detected (multimeter test)

Step 2: Power-Up Sequence

Don’t just flip everything on at once.

Sequence:

  1. Insert main fuse (battery to bus bar)
    • System is now live
    • Check voltage at bus bar (12.4V typical)
  2. Turn on DC-DC charger (if installed)
    • Start engine
    • Verify charging (LED indicator)
    • Check voltage rise on leisure battery
  3. Connect solar (if installed)
    • Controller should detect panels
    • Begin charging if sun available
  4. Test each 12V circuit individually:
    • Turn on one circuit
    • Verify device works
    • Check current draw
    • Turn off, move to next circuit
  5. Test inverter:
    • Turn on inverter
    • Check 230V output
    • Test with small load
    • Turn off
  6. Test 240V system (if installed):
    • Connect hookup (or turn on inverter)
    • Test RCD (press test button)
    • Test each socket
    • Verify earth bonding

Step 3: Load Testing

With system running:

Run everything simultaneously:

  • All lights on
  • Fridge running
  • Heater on (if winter)
  • Charge devices on USB
  • Inverter powering laptop

Monitor:

  • Battery voltage (should stay >12V under load)
  • Current draw (battery monitor)
  • Any hot cables (warning sign)
  • Any strange smells (burning = stop immediately)

My testing:

  • All loads on: 18A draw from battery
  • Battery voltage: 12.6V (stable)
  • No hot cables
  • All devices working correctly
  • Pass

Testing and Commissioning

Don’t skip this phase. Testing catches problems before they become failures.

Test 1: Polarity Verification

Every circuit:

  1. Set multimeter to DC voltage
  2. Measure at device:
    • Red probe to positive
    • Black probe to negative
    • Should read 12-14V
    • Reverse reading = wiring backwards (fix immediately)
  3. Check all circuits

Test 2: Voltage Drop Testing

For each circuit:

  1. Measure voltage at bus bar (source)
  2. Measure voltage at device (load) while running
  3. Calculate drop: Source voltage – Load voltage
  4. Should be <3%:
    • Example: 12.6V source, 12.3V load = 0.3V drop (2.4%, acceptable)

If voltage drop excessive:

  • Cable too thin (replace with thicker)
  • Poor connections (re-crimp)
  • Cable too long (reroute or upsize)

Test 3: Current Draw Verification

For each device:

  1. Check nameplate rating
  2. Measure actual current (clamp meter)
  3. Should match (within 10-20%)

Unexpected current:

  • Higher than rated: Possible fault, investigate
  • Much lower: May indicate problem or device not running full power

Test 4: Fuse Testing

Verify each fuse:

  1. Correct rating for circuit
  2. Actual continuity (multimeter)
  3. Properly seated in holder

Deliberately blow one fuse (use test fuse):

  • Verify system protects correctly
  • Fuse blows before cable damage
  • Replace with correct rating

Test 5: RCD Testing (240V)

Monthly requirement:

  1. Press RCD test button
  2. Should trip immediately (<30ms)
  3. Reset RCD
  4. If doesn’t trip: Replace RCD (it’s faulty)

Test 6: Earth Continuity (240V)

Every earth connection:

  1. Multimeter in continuity/resistance mode
  2. Test from earth pin of socket to chassis
  3. Should have very low resistance (<1Ω)
  4. High resistance = poor earth (fix immediately)

Test 7: Insulation Resistance

Professional test (optional but recommended):

Specialist insulation tester:

  • Tests cable insulation integrity
  • Detects hidden damage
  • Professional electrician can do this

Test 8: Load Profile Testing

Over 24 hours:

  1. Use van normally
  2. Monitor battery:
    • SOC at start
    • Daily consumption
    • Lowest SOC reached
  3. Verify calculations accurate:
    • Expected 70Ah use
    • Actual 72Ah use
    • Close enough

Test 9: Charging Testing

Each charging source:

Solar:

  • Verify current flow in sun
  • Check voltage regulation
  • Confirm controller settings

DC-DC:

  • Start engine
  • Verify charging begins
  • Check current matches rating

Hookup (if installed):

  • Connect to hookup
  • Verify charger activates
  • Check charging current

Test 10: Integration Testing

All systems together:

  • Charge from solar while using power
  • Charge from DC-DC while using power
  • Switch between hookup and inverter
  • Run maximum load safely

My testing lasted 3 days:

  • Day 1: Individual circuit tests
  • Day 2: Integration testing
  • Day 3: Real-world usage testing
  • Found 2 minor issues (loose connection, one fuse rating wrong)
  • Fixed and retested
  • System perfect since

Cable Management

Final phase. Makes maintenance easier and looks professional.

Step 1: Bundle Cables

Group cables logically:

  1. Power distribution (battery to bus bar)
  2. Each circuit (bus bar to device)
  3. Charging cables (solar, DC-DC)
  4. 240V cables (separate from 12V)

Bundling:

  • Cable loom (split conduit)
  • Cable ties every 30cm
  • Leave slack for service

Step 2: Secure Routing

Along van structure:

  • Use cable clips or saddles
  • Follow ribs or framework
  • Avoid movement areas

Through panels:

  • Grommets protect cables
  • Strain relief prevents pulling
  • Seal against water

My routing:

  • Main cables along passenger-side rib
  • Branch circuits to devices
  • All in split loom
  • Secured every 30cm
  • Looks tidy, easy to trace

Step 3: Labeling

Label at both ends:

  • Circuit origin (bus bar)
  • Circuit destination (device)
  • Cable size
  • Fuse rating

My labels:

  • “Lights Main – 10A – 2.5mm²”
  • “Fridge – 15A – 4mm²”
  • Clear, won’t rub off

Step 4: Access Points

Leave access for:

  • Fuse replacement
  • Connection inspection
  • Future circuit additions
  • Troubleshooting

Don’t bury cables where you can’t access them.

Step 5: Documentation

Create permanent record:

  1. Wiring diagram (laminated)
  2. Circuit list with:
    • Circuit name
    • Fuse rating
    • Cable size
    • Device location
  3. Component list
  4. Store in van

Future you will thank present you when troubleshooting in 2 years.

Troubleshooting

Common problems and solutions.

Problem: No Power at Device

Check:

  1. Main fuse installed?
  2. Circuit fuse blown? (check and replace)
  3. Switch on? (if switched circuit)
  4. Connections tight at bus bar?
  5. Connections tight at device?
  6. Cable damaged? (continuity test)

Problem: Fuse Keeps Blowing

Causes:

  1. Short circuit (cable damaged)
  2. Device faulty (drawing excess current)
  3. Fuse rating too low
  4. Cable too thin (overheating)

Diagnosis:

  • Disconnect device
  • Replace fuse
  • If fuse holds, device is faulty
  • If fuse still blows, short in cable

Problem: Low Voltage at Device

Causes:

  1. Voltage drop (cable too thin/long)
  2. Poor connections (high resistance)
  3. Battery depleted

Solutions:

  • Measure voltage at source and load
  • Calculate drop
  • Upsize cable if needed
  • Re-crimp connections
  • Charge battery

Problem: RCD Trips Immediately

Causes:

  1. Earth fault (cable damaged)
  2. Wet connections
  3. Faulty appliance

Diagnosis:

  • Disconnect all loads
  • Reset RCD
  • If trips, wiring fault
  • If holds, reconnect loads one by one
  • Trips when specific load connected = that load is faulty

Problem: Inverter Shuts Down Under Load

Causes:

  1. Battery voltage too low
  2. Overload (device draws more than inverter rated for)
  3. Cable too thin (voltage drop)
  4. Poor battery connections

Solutions:

  • Charge battery
  • Reduce load
  • Check cable size adequate
  • Tighten battery connections

Final Thoughts

I’ve installed four electrical systems over six years. The first took four weekends and had three major problems that required partial rewiring. The most recent took three days with zero issues.

The difference wasn’t skill or experience—it was methodology. The first system was “figure it out as I go.” The recent system was planned for a week before touching a wire. I drew diagrams, calculated every cable size, planned every route, prepared every tool. The installation itself was just executing the plan.

Here’s what I’ve learned: electrical installation rewards planning and punishes improvisation. The time spent planning (1 week) saved me three weekends of rework. The money spent on proper tools (£150) saved me from dangerous poor connections. The effort of proper testing (3 days) prevented failures that would’ve cost weeks of troubleshooting.

And please, don’t skip safety. Fuse everything. Use proper cable sizes. Test RCDs monthly. The £200 spent on protection could save your £30,000 van from fire. I’ve seen the aftermath of electrical fires in vans—they’re total losses. It’s not worth the risk.

My current system has been flawless for 14 months. It powers everything I need, charges reliably, and I’ve never once worried about safety. It cost £435 in materials and three days of work. That’s £17/month over 26 months for unlimited off-grid power. Worth every penny and every hour.

Now go plan your system properly, and actually follow the plan instead of improvising halfway through when you realize you forgot to buy ring terminals.

Where to Buy (UK Sources)

Cables:

  • 12V Planet: Quality automotive cable
  • Vehicle Wiring Products: Specialist auto electrical
  • Auto Marine Electrical: Marine/automotive grade

Components:

  • 12V Planet: Complete range, quality components
  • Blue Sea Systems: Premium marine (via chandleries)
  • Screwfix: Basic switches, consumer units
  • CPC Farnell: Wide range, technical specs

Tools:

  • Screwfix: Drills, basic tools
  • Amazon UK: Crimping tools, multimeters
  • RS Components: Professional test equipment

240V Components:

  • Screwfix: RCDs, consumer units, sockets
  • Toolstation: Similar to Screwfix
  • CEF (City Electrical Factors): Trade supplier

Specialist Van Components:

  • 12V Planet: Van-specific items
  • Carbest/Dometic: German quality (premium)
  • Various eBay sellers: Budget options

Author

Related Posts

Write A Comment
